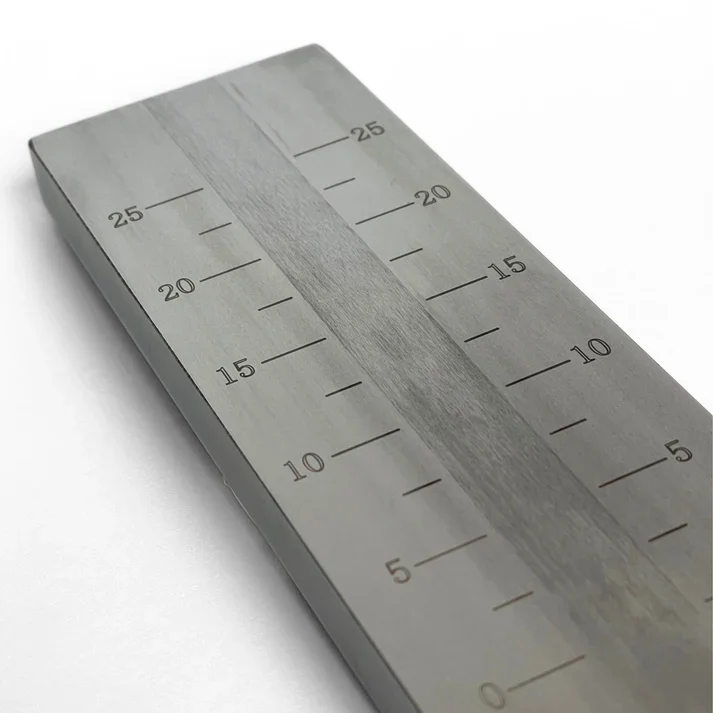

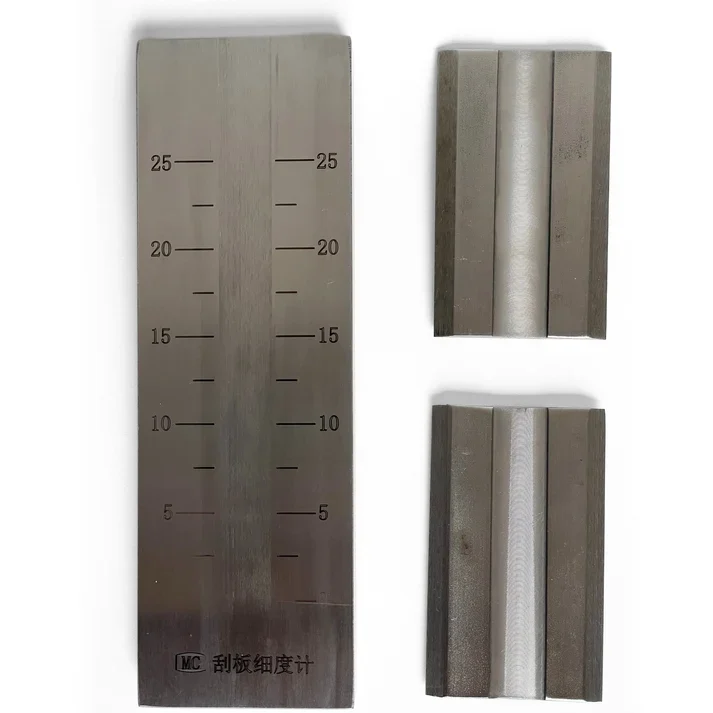

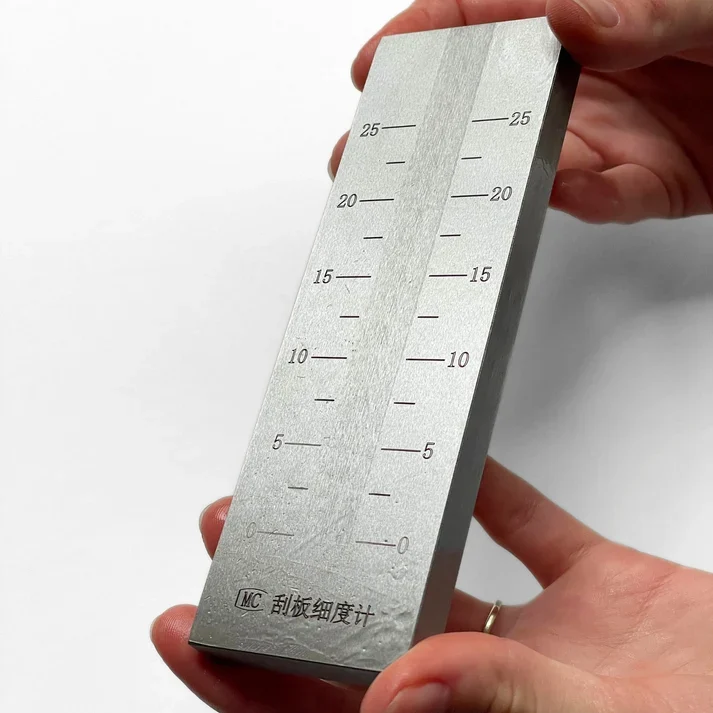

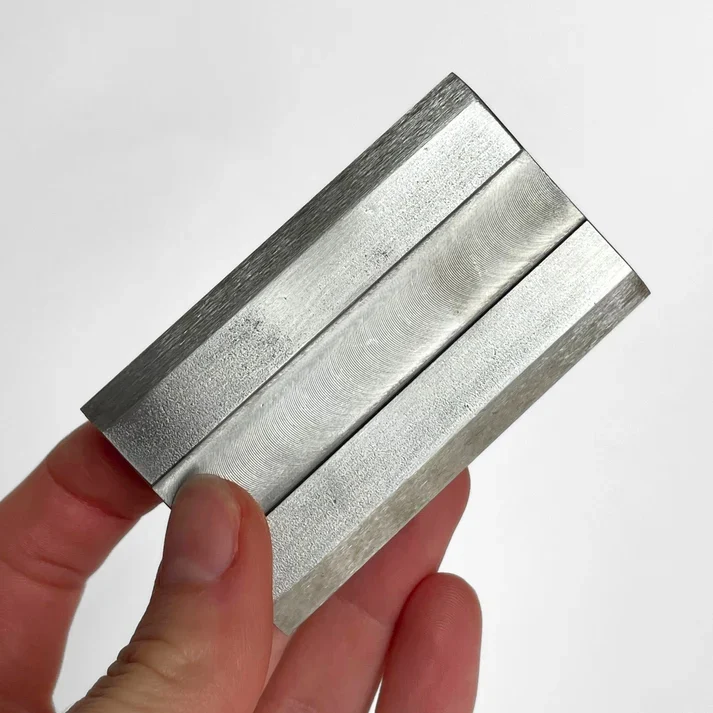

The grindometer plate with a matcha streak drawn down its channelThe grindometer beside a scraper, both carrying matcha after a readingThe grindometer plate with its two metal scrapersThe grindometer held in two hands, showing the scale from 25 down to 0Close view along the precision cut channel and the engraved scaleOne of the two metal scrapers held in a hand

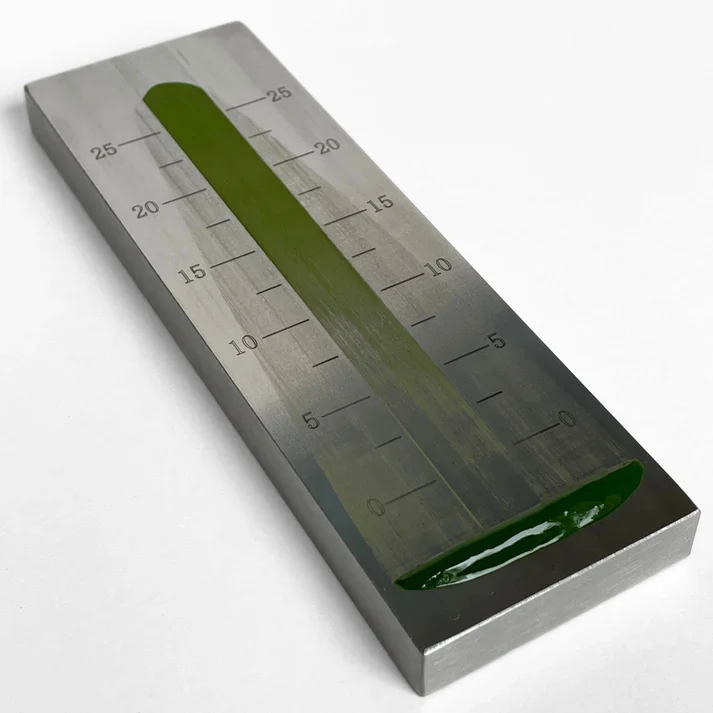

A streak drawn down the channel.

Grindometer

75 USD

0 to 25 microns

A simple, effective tool for measuring matcha particle size and getting a rough read on particle size distribution. Ideal for QA, milling experiments, or anyone curious to compare different commercially available matcha products.

Shipping calculated at checkout.

Highlights
  • Measures particles from 25 to 0 microns
  • Comes with two metal scrapers
  • For QA, milling experiments, or comparing commercially available matcha
What is in the box

The grindometer plate and two metal scrapers.

Before first use

The plate ships with a protective grease on it, to prevent rust in transit. Clean it with soap and water before you take a reading.

How it works

The central precision cut indent is a channel for the particles to get stuck as the scraper goes over the flat surface. When the streak stops, all remaining particles are larger than the gap between the scraper and the grindometer, showing the smallest particle size.

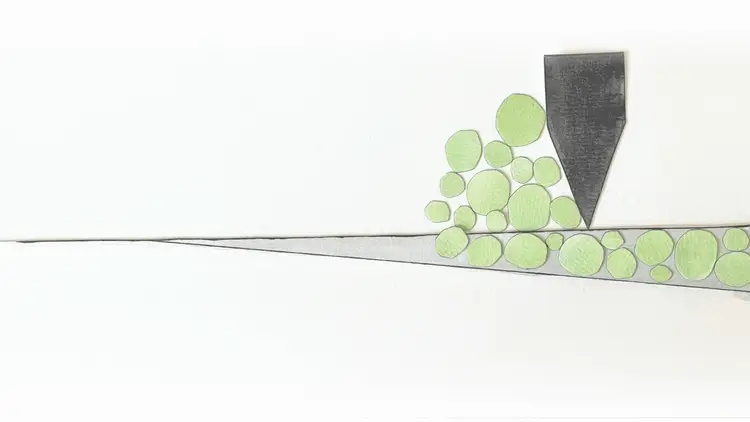

A section through the channel: the scraper travels left, larger particles catch where the channel becomes shallower than they are, and the streak ends
In section: the channel shallows along its length, and each particle stops where it no longer fits.

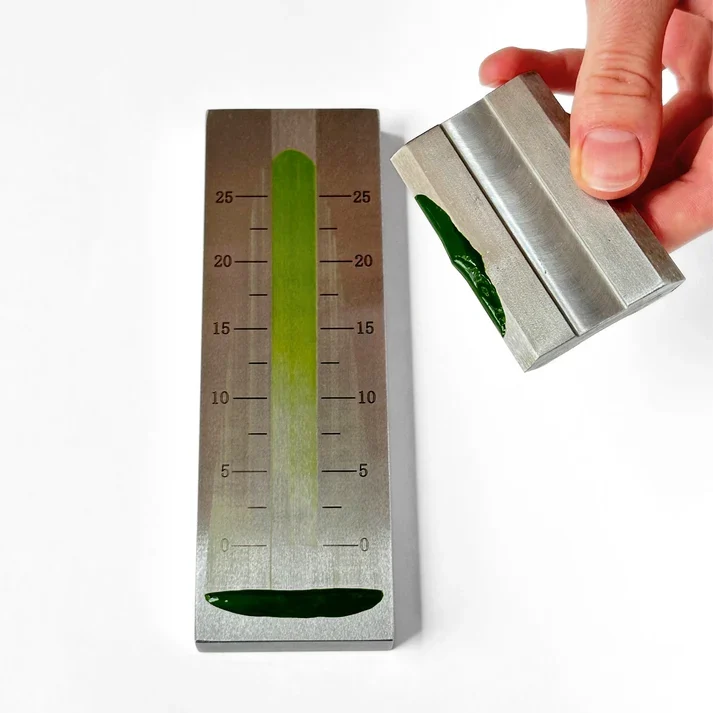

Taking a reading: a bead of matcha at the deep end, then one steady pass with the scraper.

Know what you are actually pouring.

Tell us what you are measuring and how many you need, and we will come back to you.

Price
75 USD, shipping calculated at checkout
Range
25 to 0 microns
In the box
The grindometer plate and two metal scrapers
